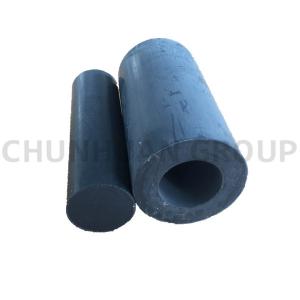

80%PTFE+15%GLASS FIBER+5%MOS2 Rod Dia 20-690 Mm Color Gray Black For V Type
In fluoroplastics, PTFE got the most consumption and was widely used. It's an important material in a variety of fluoroplastics. PTFE exhibits astonishing chemical resistance and owns superior chemical resistance. This self-lubricating material provides low friction coefficient, so it's an idea material for manufacturing corrosion-resistant gaskets & seals. And temperature resistance from -200° C to 260 ° C.
PTFE Filled With Other Materials:
| Filled Materials | Common Filled Ratio ( Quantity %) | Main Performances |
| Bronze | 40, 60 | Increases Hardness And Wear Resistance;
Increases Dimensional Stability And Compressive Strength;
Not Suitable For Corrosive Or Electrical Applications |
| Carbon | 5, 10, 15 | Increases Compressive Strength, Hardness, Wear, And Load Properties.
Good Chemical Resistance;Improves Electrical Properties. |
| Graphite | 5, 10, 15 | Improves The Deformation Under Load; Reduces Initial Wear;
Improves Thermal And Eletrical Conductivity |
| Glass Fiber | 10, 15, 25 | Increases Compressive Strength, Rigidity And Wear.
Reduces Creep And Cold Flow; Improve Dimensional Stability. |
| Carbon Fiber | 10 , 15, 25 | Increases Compressive Strength, Hardness, Wear, And Load Properties.
Reduces Creep And Cold Flow |
POB
(Polyphenyl Ester) | 5, 10, 15 | Improve The Lubrication Performance;Enhance The Mechanical Strength; Increase Using Temperature |
| BaSO4 | 5, 10, 15 | Increases Compressive Strength, Hardness And Wear Resistance
Reduces Creep |
| SiO2 | 5, 10, 15 | Increases Hardness And Wear Resistance; Improve Dimensional Stability. |
| Glass Beads | 5, 10, 15 | Reduces Creep And Cold Flow;Lower Density
Increases Hardness And Wear Resistance; |
| Others Materials | PEEK(Polyetheretherketone), PI(Polyimide), MoS2 Are Also Ok |
| Remarks | Some Materials Have Similar Enhancement Effect, But Degrees Of Enhancement Are Different. And They Have Different Prices. More Details Please Contact Us. |
Filled PTFE Color
material | color |
| PTFE+bronze | coffee, green |
| Virgin PTFE | white |
| PTFE+carbon | black |
| PTFE+graphite | black |
| PTFE+glass fiber | white, blue |
| PTFE+polyester+Mos2+graphite | gray black |
| PTFE+polyester | beige |
| PTFE+carbon+graphite+bronze+Mos2 | black |
| PTFE+glass+Mos2 | gray black |
| PTFE+glass+graphite | gray black |
Properties
| Item | Pure PTFE | 60% Bronze | 20% Glass Fiber | 15% Glass Fiber 5% Graphite | 20% Carbon Fiber | Unit |
| Density | 2.18 | 3.9 | 2.26 | 2.22 | 2.01 | G/M3 |
| Tensile Strength | 276 | 127 | 175 | 158 | 189 | MPa |
| Elongation At Break | 238 | 101 | 207 | 205 | 92 | % |
| ROCKWELL Hardness | 3.2 | 33.8 | 6.4 | 11.3 | 32.1 | - |
| Friction Coefficient | 0.13 | 0.18-0.2 | 0.20-0.24 | 0.15-0.17 | 0.16-0.18 | - |
| Bending Strength | 207 | 280 | 210 | 225 | 320 | °C |
PTFE parts Application
1, Aviation industries: Medium lead equipments in hydraulic pressure system and the high,middle,low pressure piping in the cold pressure system of airplane, capacitor and so on.
2, Construction and building industries: bridge, tunnel, steel structure house-support, large-scale chemical pipeline, supporting block of store trough, the supporting pedestal of bridge and the bridge-span circumvolving system and so on.
3, Chemical machine equipment industries: widely applied in the bearing of paper-making
machine and agricultural machine, as the piston ring, machine tool oriented rail and oriented ring.
4, Electronic and electrical industries: can make insulated wire, capacitor, radio insulated
gasket, insulated cable, and the parts of transformer, oxygen sensor, microphone,
loudhailer and robot.
